Heating Unit

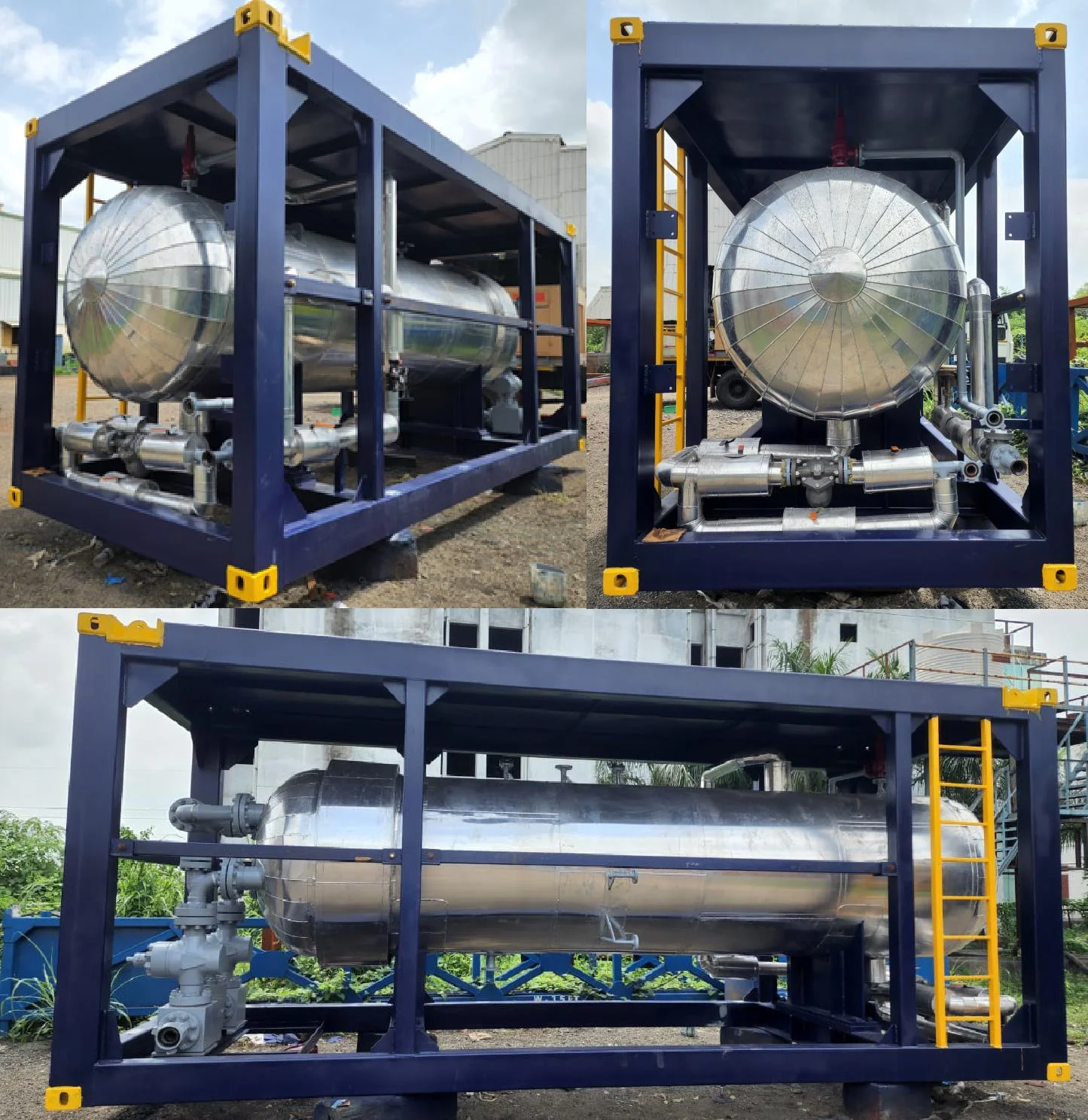

Steam Exchanger

Steam-heat exchangers are used to raising the temperature of well effluents to prevent hydrate formation, reduce viscosity, and break down emulsions for efficient separation of oil and water. Because steam-heat exchangers drastically reduce risk, they are used on offshore platforms and in other work conditions where safety regulations do not permit the use of indirect-fired heaters.

Technical Details – Coil

Process Coil Pressure Rating – 10,000 PSI
Working Temperature -4 to 350 Deg F
Max Design Temperature – 200 Deg C
Coil Size – 4” Internal
Heating Capacity – 3 MM BTU /Hr
Coil TP connection – 3” 1502 H/U Connection
By Pass Manifold – Yes
Adjustable choke Installed – yes
Outlet – RTD and Temperature Gauge ( 0- 350 Deg C)

Coil Setup Assembly

Design Standard

Coil Design code – ASME B31.3 , NACE MR-0175
Vessel Design Code Vessel (ASME VIII Div -1 )
Coil MOC – SAE 4130
Pressure vessel MOC – SA gr 70

Pressure Vessel Technical Details

Vessel Design pressure – 350 PSI
Design Temperature – 200 Deg C
Inner dia – 1320 MM
Length ( Seam to Seam ) – 5428mm

Process Connection

  • Inlet – 3” 1502 Thread
  • Outlet – 3” 1502 wing
    • Temperature gauge and RTD Sensor Installed

Steam Connection and Line Details

  • Steam Inlet – 2in 206 thread
    • TCV Installed and closed loop with Process Coil outlet temperature
    •  TCV bypass line – yes
  • Stem outlet – 2in 206 wing
    • Steam Trap ( ball float type )
    • Bypass line – yes

Feature

  • Temperature (Steam) Control Valve at Steam entry
  •  Steam Trap at Steam condensate outlet
  •  Temperature controller
  • Glass wool insulation with aluminium jacket
  •  Choke b/w inlet and outlet
  •  Safety relief valve

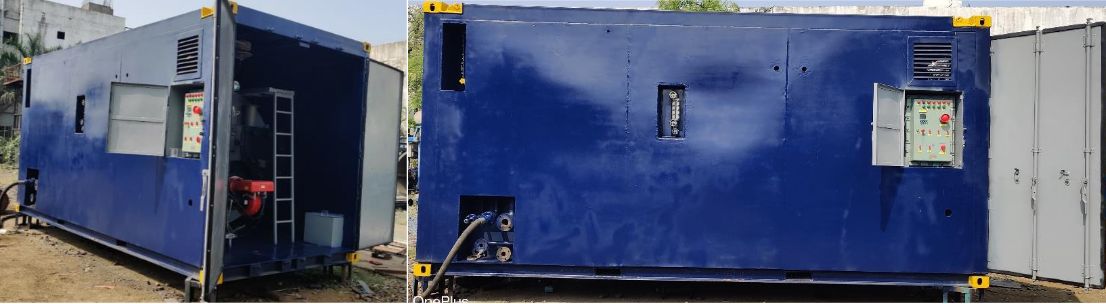

Steam Generators – Zone -2

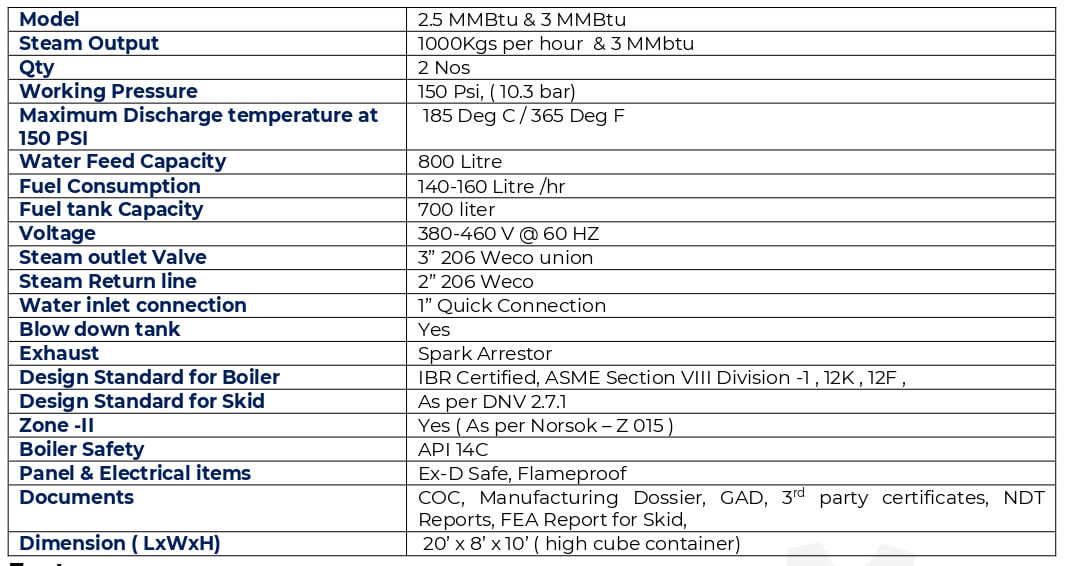

Technical Details

Features

  • The internal lighting is designed to be intrinsically safe, ensuring safety during operation and maintenance in
    all environments.
  •  Standard safety features include high/low water level monitoring, high-pressure steam shutdown, and flame
    failure protection.
  •  Options for gas detection (propane, methane, and H2S) are available.
  •  Expert personnel offer a comprehensive service package, including installation, commissioning, servicing,
    refueling, and additional installation support.
  • The system includes steam traps and steam vents with safety valve vents placed out of reach of personnel

Indirect Water Bath Heater

The Indirect Water Bath Heater (I.W.B.H) is a designed skid mounted Used for in direct crude oil heating , Indirect brine heating and Indirect water heating The complete vessel is insulated so no heat loss and increases its reliability & capacity to heat effluent more efficiently

Technical Details

  • Heating capacity – 3-3.5 MMBTU

  • Dimension (shell) – 1830 O.D x 3200 L mm

  • Shell Pressure Rating – Atmospheric

  • Gas Inlet – 1” NPT FEMALE

  • Operating pressure (coil) – 5000 PSI

  • Test pressure (coil) – 7500 PSI

  • Temperature (coil) –  -20 to 350 DEG F

  • Manifold – 3-1/8 “ 5K PSI

  • Service  – H2S

  • Standards – NACE MR 01 75/API 12K/ API 6K

  • Dimension – 6012 x 2450 x 2864 mm

  • Water level indicator – Level sensor / Sight glass

  • Shell capacity   – 15 BBL

  • Operating power supply  – 4- phase , 440 V AC

  • Connection cable – 4-coíe double aímoíed DGMS Approved.

  • Diesel level indicator  – Level sensor/ Sight glass

  • Temperature (vessel) – R.T.D Sensor / analog gauge

  • Temperature (Inlet/Outlet) – Analog gauge

  • Insulation – Insulated

  • Insulation Thickness – 75 MM

  • Chimney Height – 4 meter

  • Skid – As Per DNV 2.7.1
